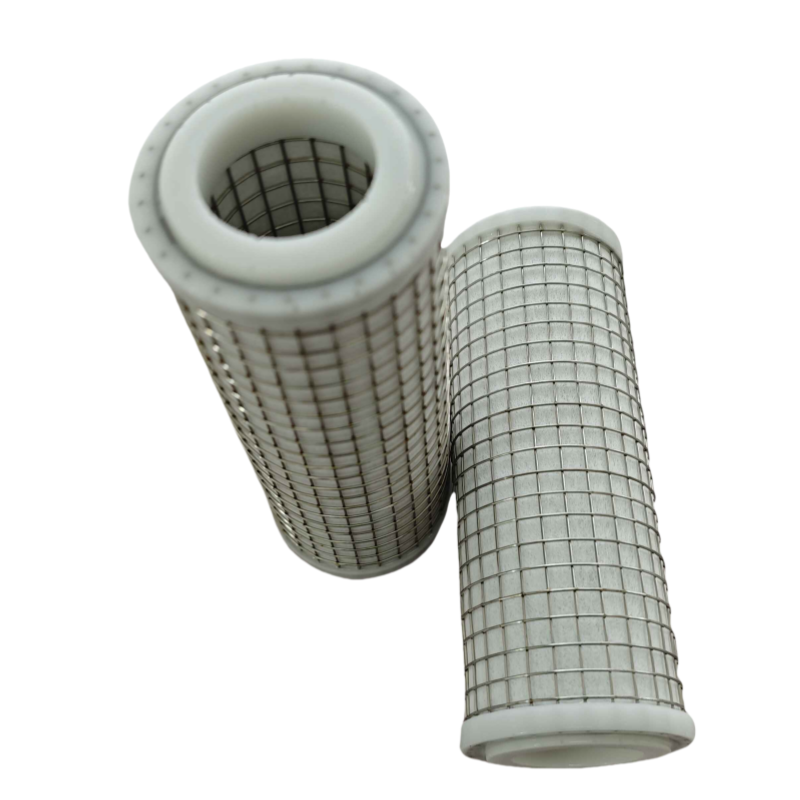

07347,10CU25187 Air compressor coalescing filter element

1. Function

 Coagulates tiny oil droplets (above 0.1 µm) and relies on gravity for oil return, achieving oilgas separation.

 Reduces the oil content in exhaust gas, protecting downstream drying and purification equipment.

2. Main Technical Parameters

 Filtration accuracy: 0.1 µm

 Initial pressure differential: ≤0.02 MPa

 Operating temperature: Approximately 80 ℃ (shortterm 120 ℃)

 Design life: ≥4000 h (normal operating conditions)

 Residual oil content: ≤3 ppm w/w

3. Structure and Materials

 Outer/inner frame: Galvanized steel plate or stainless steel perforated plate

 Filter layer: Ultrafine borosilicate glass fiber + composite material, multilayer gradient structure

 End cap: Metal or oilresistant PU, with fluororubber Orings

 Gasket: Fluororubber/silicone optional, oil and temperature resistant

4. Application Range

 Matching 1575 kW Oilinjected screw compressor, also compatible with other brands of oil separator tanks of the same interface size

 Applicable media: mineral oil, PAO, PAG, and esterbased air compressor oils

5. Installation Dimensions (Industry Standard)

 Outer diameter: ≈ 95100 mm

 Inner diameter: ≈ 4448 mm

 Height: ≈ 187 mm

 Gasket: 226 beveled + flat double seal
