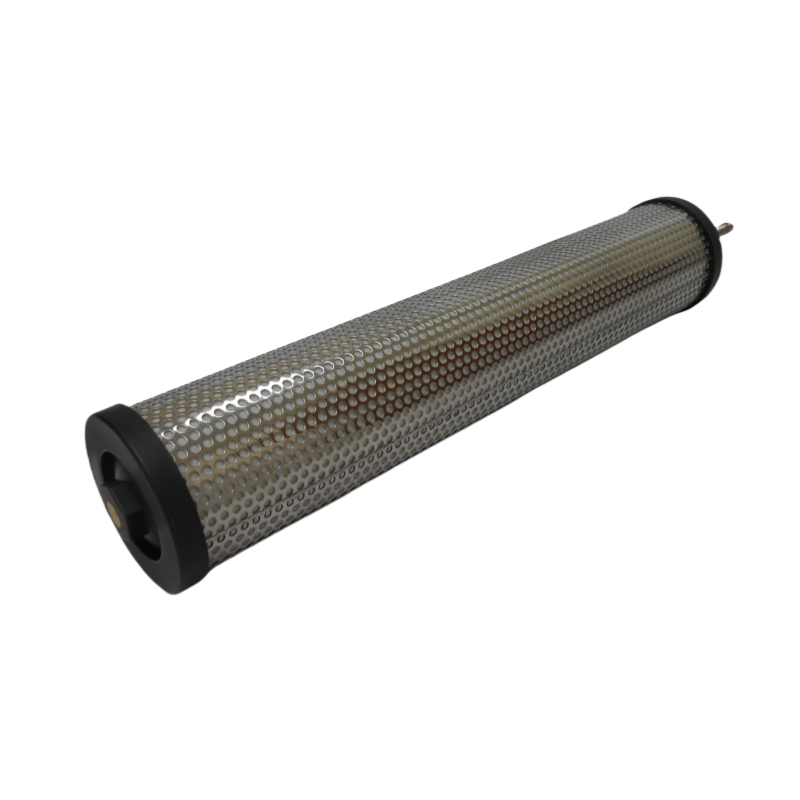

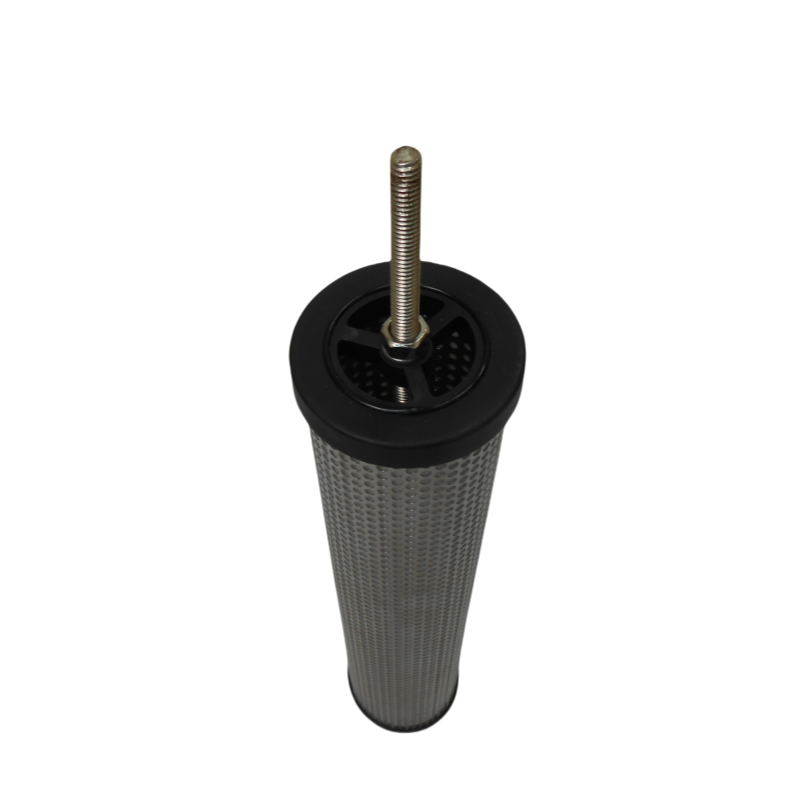

The following is basic information about the 0715-6 compressed gas filter element:

 Technical Parameters

- Filtration accuracy: 0.01μm.

- Working pressure: Standard 0.7MPa, maximum 1.0MPa.

- Maximum operating temperature: 120°C.

- Operating flow rate: 2-2600L/min.

- Differential pressure alarm: 1 bar, 3 bar.

- Working medium: Compressed air or non-corrosive gas.

 Product Features

- Excellent structural performance: Utilizes a stainless steel frame with a different structure for corrosion resistance, high weld strength, and low airflow resistance.

- Excellent filtration performance: Filter elements of different precision levels utilize different structural types. The new "matrix hybrid fiber" increases the media contact area and improves filtration efficiency.

- Preventing liquid backflow: Utilizes a closed, oil- and acid-resistant foam sleeve to prevent coalesced liquid from re-entering the airflow, ensuring highly efficient oil removal.

 Product Applications

- Pre-treatment: Used before E5 filters for pre-treatment.

- Post-treatment: Used after refrigerated dryers and adsorption dryers to further improve air quality.

- General Protection: Used after the air compressor cooler and before other filters for general protection.

- Pre-treatment Device: Used before refrigerated dryers as a pre-treatment device.
