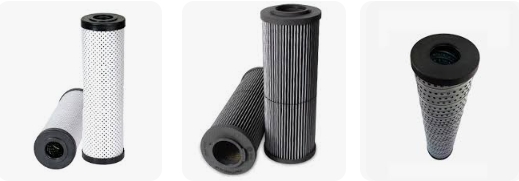

HYDAC 0251RK010MM Replacement Hydraulic Filter Element
HYDAC 0251RK010MM - Cross reference oil filters
HYDAC 0251RK010MM Replacement Hydraulic Filter Element
The HYDAC 0251RK010MM is a pleated hydraulic filter element designed for hydraulic oil and lubrication systems. DeMalong Filter supplies replacement elements for the 0251RK010MM reference with glass fiber filter media and selectable filtration configurations.
The element is designed for contamination control in hydraulic systems, lubrication systems and oil filtration equipment. The correct filtration rating, seal material and pressure configuration should be confirmed before ordering.
HYDAC 0251RK010MM Technical Specifications
| OEM Brand |
HYDAC |
| Part Number |
0251RK010MM |
| Product Type |
Pleated Hydraulic Filter Element |
| Filter Media |
Glass Fiber |
| Available Filtration Rating |
1–25 µm |
| Filter Area |
15 |
| Working Pressure Options |
1.0 MPa, 2.0 MPa, 16.0 MPa and 21.0 MPa |
| Operating Temperature |
-50°C to 50°C |
| O-Ring Material |
NBR or Fluoro Rubber |
| Filter Material Options |
Fiberglass, oil paper and stainless steel mesh |
| Filtration Efficiency |
Up to 99.9% according to the available specification |
Exact dimensions, connection details and the specific micron rating should be confirmed from the original HYDAC element before production.
0251RK010MM Filter Media
The standard replacement configuration uses pleated glass fiber media to provide a large effective filtration area and high dirt-holding capability. Oil paper and stainless steel mesh configurations may also be available depending on the required application.
Applications
- Hydraulic systems
- Lubrication systems
- Oil filtration machines
- Steel and metallurgy equipment
- Power generation equipment
- Shipbuilding and marine systems
- Construction machinery
- Industrial machinery
HYDAC 0251RK010MM Related Model
The HYDAC 0251RK020MM is listed as a related model. Similar HYDAC references should not be treated as automatic one-to-one equivalents because dimensions, filtration rating and construction may differ.
How to Confirm the Correct Replacement
- Confirm the original part number: 0251RK010MM.
- Confirm the required filtration rating.
- Confirm the seal material required by the hydraulic fluid.
- Check the original element dimensions.
- Send a photograph of the original element if the specification is uncertain.
Request a Quote
DeMalong Filter supplies replacement HYDAC 0251RK010MM hydraulic filter elements for samples, maintenance replacement and bulk orders.
HYDAC and 0251RK010MM are referenced for identification and compatibility purposes only. DeMalong Filter is an independent aftermarket supplier.
- Filter Model: 0251RK010MM
- Product Type: Pleated Filter Element
- Filter Material: Glass Fiber
- Filter Precision: 1-25μm
- Working Pressure: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
- Operating Temperature: -50-50℃
- Filter Area: 15
- Maximum Pressure Differential: 4
- Tolerance: Corrosion resistant, high-temperature resistant, high dirt holding capacity, acid and alkali resistant
- O-Ring Material: NBR, Fluoro Rubber
- Material: Fiber glass; oil paper; ss mesh
Applicable Equipment and Industries
- Applicable Equipment: Hydraulic systems, lubrication systems, oil filtration machines, etc.
- Applicable Industries: Widely used in steel, electric power, metallurgy, shipbuilding, aviation, papermaking, chemical industry, machine tools, construction machinery, and engineering machinery fields.
Performance Features
- Filtration Efficiency: 99.9%
- Structural Strength: Capable of withstanding various working pressures to ensure safe operation under various conditions.
- Filtration Media: Suitable for lubricating oil and hydraulic oil systems.
Similar Models
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
