HYDAC 0110D010BN4HC Pressure Filter Element Replacement | Cross Reference

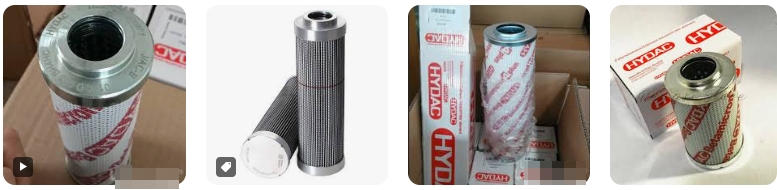

HYDAC 0110D010BN4HC Replacement Pressure Filter Element
HYDAC 0110D010BN4HC is a size-0110 pressure filter element using Betamicron®4 low-collapse
(BN4HC) glass fiber media at a 10-micron rating. This part has been discontinued by HYDAC
and superseded within the current Betamicron4 D-series line; DeMalong Filter manufactures a
fully equivalent aftermarket replacement.
Specifications
| Filter Type | Pressure filter element ("D" series) |
|---|
| OEM Manufacturer / Supplier | HYDAC |
|---|
| Filter Media | Betamicron®4 glass fiber, low-collapse (BN4HC) |
|---|
| Micron Rating | 10 µm |
|---|
| Overall Length | 6.02 in (153 mm) |
|---|
| Outer Diameter | 1.85 in (47 mm) |
|---|
| Inner Diameter | 0.87 in (22 mm) |
|---|
| Collapse Pressure | 435 psid (30 bar); high-collapse BH4HC variant rated to 3,045 psid (210 bar) |
|---|
| Operating Temperature | -30 °C to +100 °C |
|---|
| Fluid Compatibility | Mineral oils, non-flammable fluids, synthetic and rapidly biodegradable oils |
|---|
OEM & Equivalent / Cross Reference Part Numbers
| Brand | Part Number |
|---|
| HYDAC | 0110D010BN4HC |
| HYDAC (related standard-collapse variant) | 0110 D 010 ON / 1250488 |
| DeMalong Filter (our equivalent replacement) | Contact us for our part number |
Cross reference numbers are for identification purposes only. DeMalong Filter Inc. products are aftermarket replacements, not affiliated with, sponsored by, or manufactured by HYDAC.
Application Equipment & Industries
- Mobile and industrial hydraulic power units
- Machine tools and press hydraulic systems
- Construction, steel, and general industrial hydraulic equipment
Quality & Testing
DeMalong Filter elements are manufactured under ISO 9001 quality management and tested to
ISO 16889 (multi-pass efficiency & dirt capacity), ISO 2941 (collapse pressure), ISO 2942
(fabrication integrity), ISO 3968 (pressure drop), and ISO 3724 (flow fatigue).
Packaging, Lead Time & Customization
| Packaging | Individual carton with DeMalong brand and part number, or neutral/customer-branded packaging on request |
|---|
| Samples | Available for testing and fitment verification before bulk order |
|---|
| Customization | Alternate micron ratings (3/5/10/20 µm) and low/high-collapse variants available within the size-0110 body |
|---|
| Lead Time & MOQ | Varies by order quantity — contact us for a specific lead time and MOQ quote |
|---|
Frequently Asked Questions
- Is 0110D010BN4HC still in production by HYDAC?
- No, this part has been discontinued by the manufacturer. DeMalong Filter continues to supply an aftermarket-compatible replacement.
- What does "BN4HC" mean?
- It denotes a Betamicron®4 low-collapse glass fiber element, as opposed to "BH4HC" which is the high-collapse variant of the same size.
- What is the difference between this and HYDAC 1250488?
- 1250488 (0110 D 010 ON) is the same physical size using HYDAC's Optimicron media family rather than Betamicron4 — dimensions are similar but media generation differs.
- Can I get a higher collapse-pressure version?
- Yes, the BH4HC high-collapse variant in the same 0110 size is available on request.
- Do you offer other micron ratings?
- Yes, 3, 5, 10, and 20 µm are available within this element size.
The 0110D010BN4HC filter element is a high-performance hydraulic filter designed to remove contaminants from hydraulic systems, ensuring optimal system operation and longevity. Here are the detailed specifications and applications for the 0110D010BN4HC filter element:
Filter Specifications:
- Filtration Rating: 10 µm
- Material: Pleated Microglass Media
- Sealing Material: NBR (Perbunan)
- Maximum Pressure: 210 bar (BH4HC), 20 bar (BN4HC)
- Flow Direction: From outside to inside
- Temperature Range: -30 °C to +100 °C
- Bypass Feature: No bypass as standard
- Element Type: D – pressure elements
- Size: 0110
- Betamicron® High Pressure Filter Material: BH/HC
- Lower Temperature Rating: -15 degrees Fahrenheit
- Working Medium: Ordinary hydraulic oil
Applications: The 0110D010BN4HC filter element is widely used in hydraulic systems and lubrication systems to filter out metal particles and rubber impurities caused by oil wear. It is suitable for use in a variety of industrial equipment, including but not limited to:
- Industrial machinery
- Medical equipment
- Wind power systems
Industry Compatibility: The filter element is designed to be compatible with a wide range of hydraulic fluids, including:
- Hydraulic oils H to HLPD DIN 51524
- Lubrication oils DIN 51517, API, ACEA, DIN 51515, ISO 6743
- Compressor oils DIN 51506
- Biodegradable operating fluids VDMA 24568 HETG, HEES, HEPG
- Fire-resistant fluids HFA, HFB, HFC, and HFD
- Operating fluids with high water content (>50% water content) on request
Similar Models: For customers looking for alternative or similar models, here are some options that may be suitable:
- 0030, 0035, 0055, 0060, 0075, 0095, 0140, 0160, 0240, 0260, 0280, 0300, 0330, 0450, 0500, 0650, 0660, 0900, 0990, 1320, 1500
It's important to note that the 0110D010BN4HC filter element is a specific part and may not be directly interchangeable with other models without proper verification of compatibility. It is always recommended to consult with the equipment manufacturer or a professional filter supplier to ensure the correct filter element is used for your specific application.
For more information or to inquire about the availability of the 0110D010BN4HC filter element, please reach out to professional filter suppliers or the original equipment manufacturer.
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
