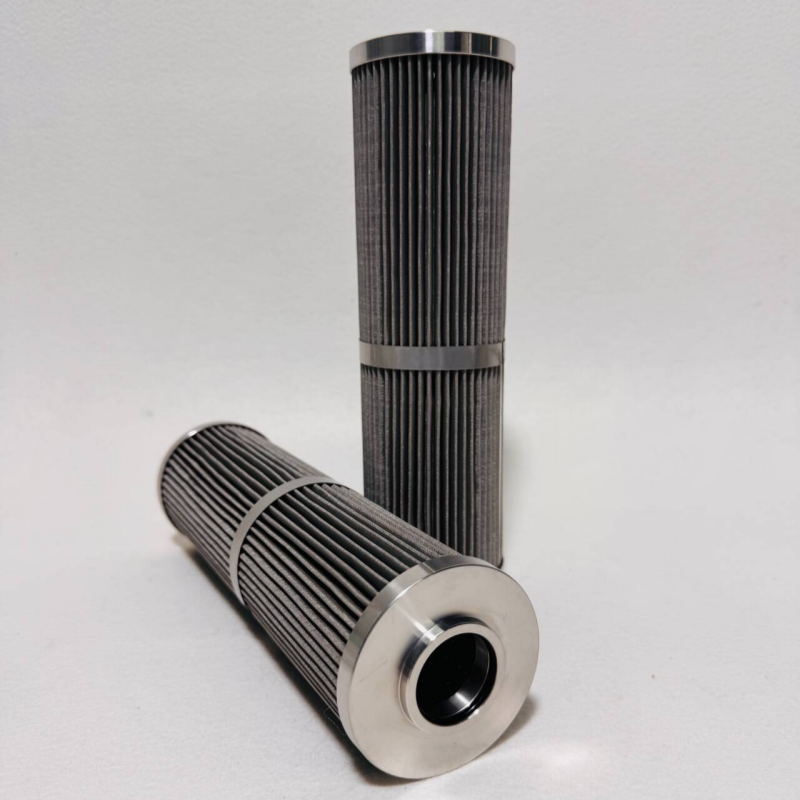

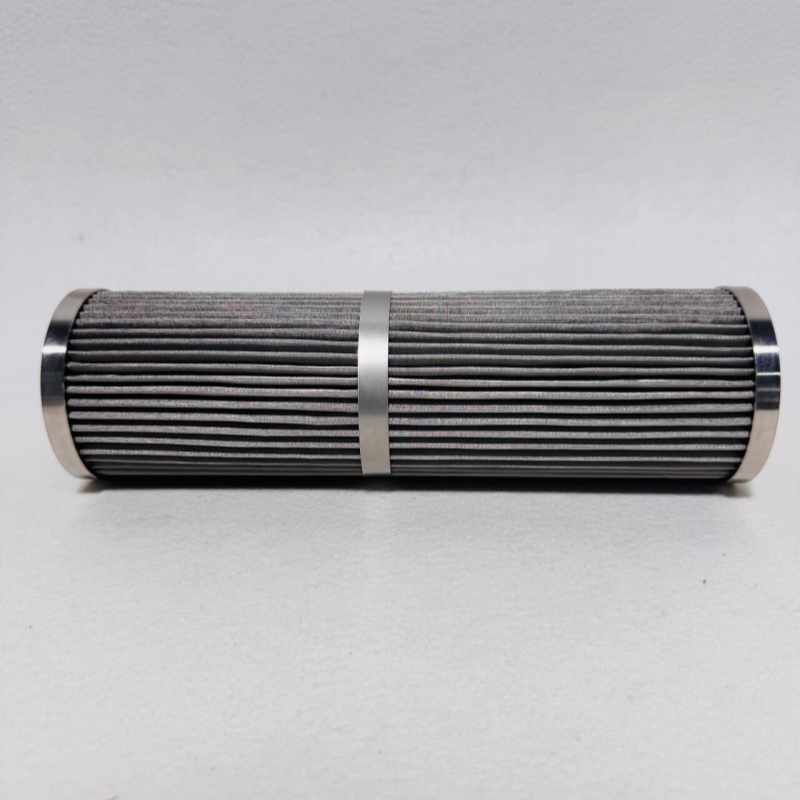

The stainless steel filter element VTR-S-1813-A-PX03V47.04.007 is an oil filter element used in industrial hydraulic systems, commonly found in heating oil stations and similar applications.

Basic Information and Applications

 Product Name: Stainless Steel Mesh Filter Element for Heating Oil Station Outlets.

 Main Applications: Used in hydraulic oil systems to continuously filter impurities, moisture, and other contaminants from the oil, ensuring normal system operation.

 Application Areas: Suitable for power plants, steel mills, tunnel boring machines, mining, papermaking, petroleum, chemical, metallurgy, automotive, aerospace, and many other industries.

Main Technical Parameters

Filter Media Available in glass fiber, metal mesh, metal powder, sintered metal, sintered felt, etc.

Filtration Accuracy Wide range depending on the filter media: glass fiber 1-70μm, metal mesh 3-400μm, filter paper 5-40μm

Rated Flow Rate 6~9100 L/min (Wide range, suitable for different systems)

Operating Temperature -30~120℃

Operating Pressure ≤450 kg

Quality Standards

The production and testing of this filter element comply with multiple international standards to ensure stable and reliable performance:

 ISO 2941: Test method for burst resistance of filter elements

 ISO 2942: Test method for structural integrity of hydraulic filter elements

 ISO 2943: Test method for compatibility of hydraulic filter elements with liquids

 ISO 3723: Test method for end load of filter elements

 ISO 3724: Filter element fatigue characteristics determination

 ISO 3968: Filter element differential pressure and flow characteristics

 ISO 4572: Multiple pass method for determining filtration characteristics

 ISO 16889: Filtration ratio/dirt holding capacity

> The above information is mainly from the product supplier's description. The precise specifications for a specific batch or manufacturer may vary. For purchasing or technical selection purposes, it is recommended to contact the supplier directly to confirm the detailed configuration.
