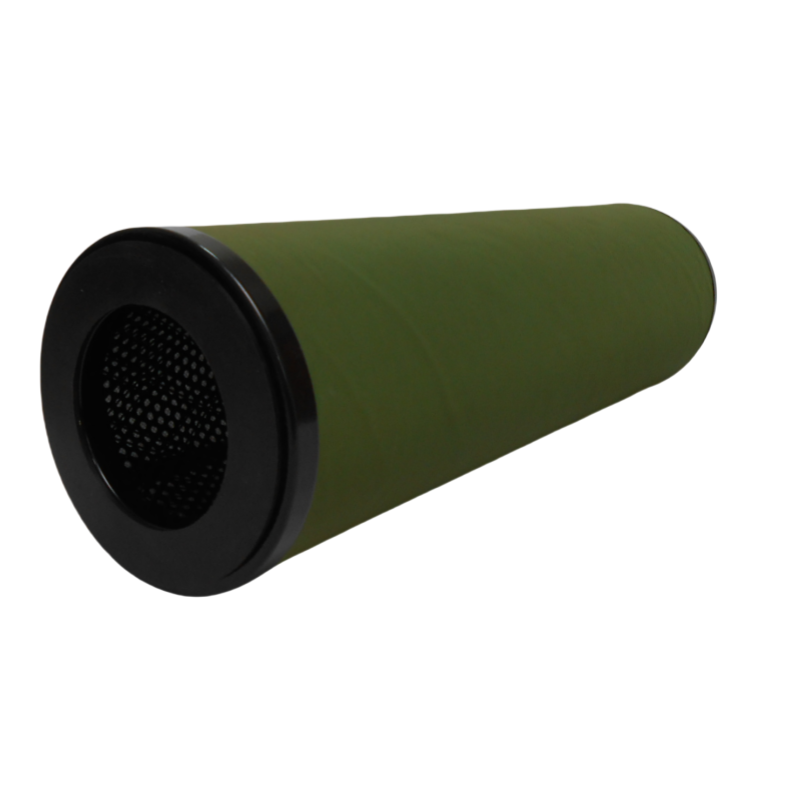

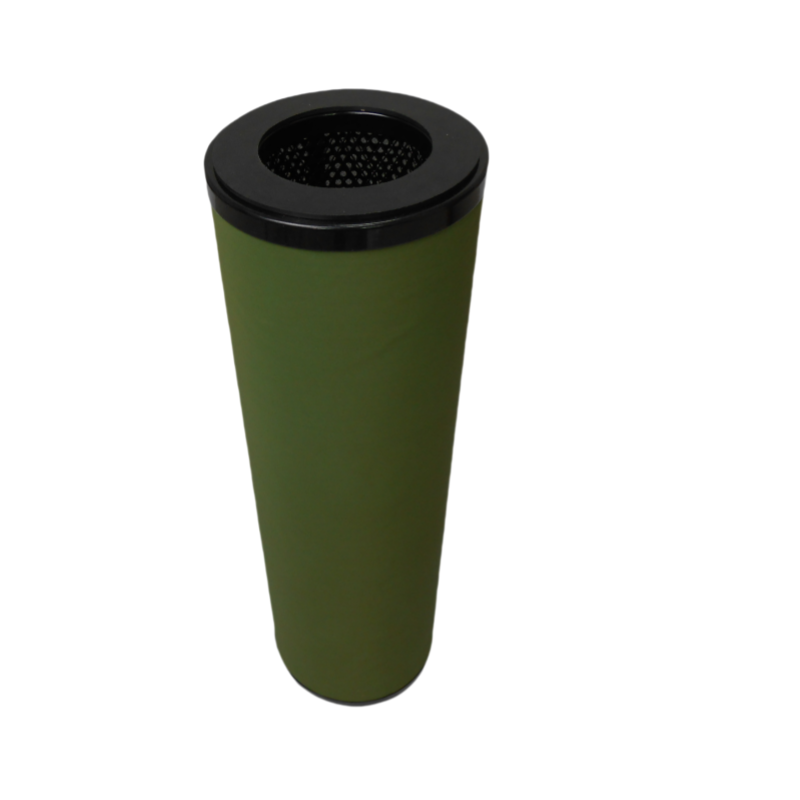

ST14F Separator Filter Element Basic Information

ST14F is a separator filter element used in oil filtration machines. It is primarily used in hydraulic oil systems to continuously filter impurities and moisture from the oil, ensuring oil cleanliness and guaranteeing normal equipment operation.

 1. Product Identification

- Model: ST14F

- Type: Oil Filter Separator Filter Element

- Filter Media: Fiberglass, Metal Mesh, Filter Paper, Sintered Felt, Sintered Mesh, Powder Sintered, Polypropylene, etc. (Customizable)

- Applicable Media: Hydraulic Oil, Lubricating Oil, and Other Industrial Oils

 2. Main Technical Parameters

Filtration Accuracy 0.01-500μm (depending on filter media)<br>Fiberglass Filter Media: 1-70μm<br>Metal Mesh Filter Media: 3-400μm<br>Filter Paper Filter Media: 5-40μm |

Operating Temperature -30~115℃ |

Maximum Operating Pressure 420 kg (≈42MPa) |

Pressure Difference Minimum 0.2MPa |

Rated Flow Rate 6~9100 L/min |

 3. Product Features

- High-efficiency separation: Effectively separates water and solid impurities from oil.

- Various materials: Multiple filter media are available to suit different working conditions.

- Temperature and pressure resistance: Suitable for high-temperature and high-pressure industrial environments.

- Strong dirt-holding capacity: Uses high-quality filter media, with a large dirt-holding capacity per unit area and a long service life.

- Reliable structure: Thickened support frame for strong pressure resistance.

---

 4. Main application areas Widely used in hydraulic oil filtration systems in the following industries:

- Coal industry: Hydraulic systems for coal mining machinery

- Automotive industry: Automobile manufacturing and repair equipment

- Pharmaceutical industry: Lubrication systems for pharmaceutical machinery

- Petrochemical industry: Oil refining and chemical production processes

Power industry: Hydraulic systems for power plant equipment

- Others: Metallurgy, machinery, textiles, etc.

---

 5. Standards met This filter element complies with multiple ISO testing standards:

- ISO 2941 (Filter element burst resistance)

- ISO ISO 2942 (Structural Integrity)

- ISO 2943 (Material Compatibility)

- ISO 3723, 3724 (End Load and Fatigue Characteristics)

- ISO 3968 (Pressure Differential Flow Characteristics)

- ISO 4572 (Filtration Characteristics)

- ISO 16889 (Dirty Holding Capacity)
