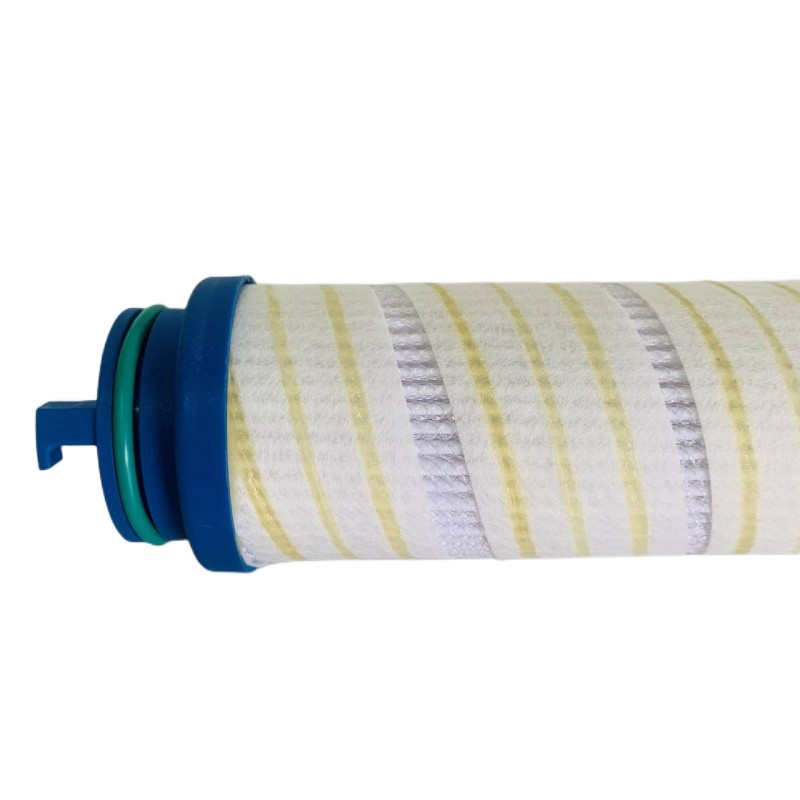

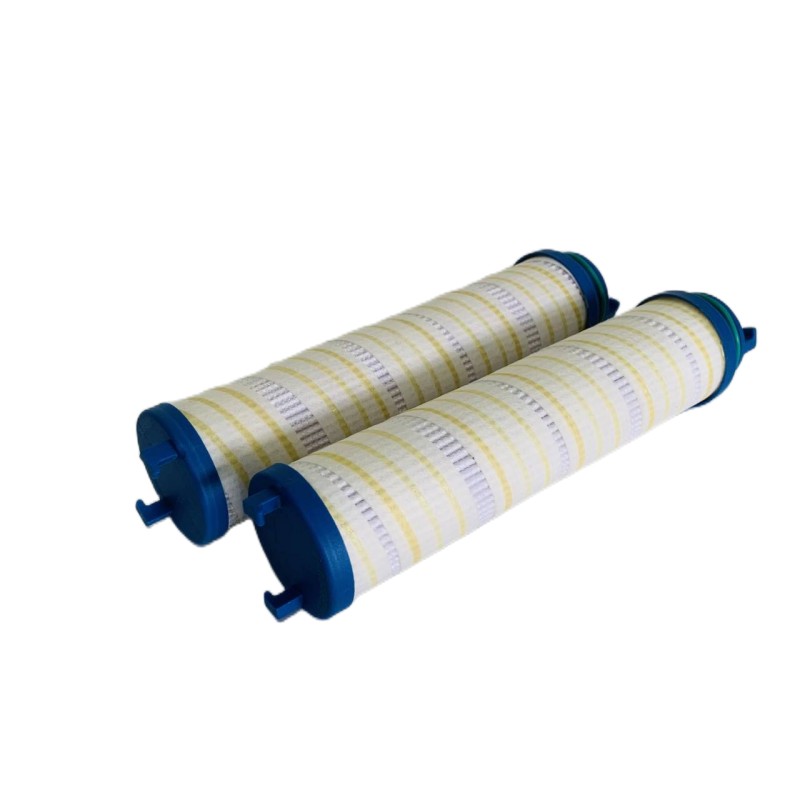

The following is basic information about BEP319-19 and BEP31919 air compressor oil filter elements:

 Product Application Used in air compressor start-up and lubrication equipment to filter impurities and small amounts of moisture from the system, achieving system cleanliness requirements.

 Technical Parameters

- Filter Media: Glass fiber, filter paper, etc.

- Filtration Accuracy: Glass fiber filter media 1-70μm; filter paper filter media 5-40μm. Filtration accuracy range 0.1~500μm.

- Rated Flow Rate: 6~9100 L/min.

- Working Pressure: 16 bar, custom orders are available upon request. Maximum working pressure 420 kg.

- Working Temperature: -30~120℃. Maximum working temperature 120℃.

- Differential Pressure Alarm: 1 bar, 3 bar, 3.5 bar.

- Sealing Material: Nitrile rubber, fluororubber.

 Testing Standards

- ISO 2941 Test method for burst resistance of filter elements.

- ISO 2942 Test method for structural integrity of hydraulic filter elements.

- ISO 2943 Test method for compatibility of hydraulic filter elements with fluids.

- ISO 3723 Test method for endoscopic conformation of filter elements.

- ISO 3724 Determination of fatigue characteristics of filter elements.

- ISO 3968 Differential pressure flow characteristics of filter elements.

- ISO 4572 Multiple pass method for determining filtration characteristics of filter elements.

- ISO 16889 Filtration ratio/dirt holding capacity.

 Main Application Areas

- Filtration in hydraulic systems of rolling mills and continuous casting machines, and filtration in various lubrication equipment.

- Petrochemical: Separation and recovery of products and intermediates in oil refining and chemical production processes; liquid purification; purification in the manufacturing of magnetic tapes, optical discs, and photographic films; particulate filtration of oilfield injection water and natural gas.

- Textiles: Liquid mixing, air hoisting, humidification, accumulator operation, liquid spraying, spraying systems, and liquid delivery. Purification and uniform filtration of polyester melt during the drawing process; protective filtration for air compressors; oil and water removal from compressed gases.

- Electronics and Pharmaceuticals: Pre-treatment filtration of reverse osmosis water and deionized water; pre-treatment filtration of cleaning solutions and glucose.

- Machining Equipment: Lubrication systems and compressed air purification for papermaking machinery, mining machinery, injection molding machines, and large precision machinery; dust recovery filtration for processing and painting equipment.

- Railway Diesel Engines and Generators: Filtration of lubricating oil and engine oil.

- Various hydraulic oil filters for automotive engines, construction machinery, ships, and heavy-duty vehicles.

- Thermal and Nuclear Power: Purification of oils in the lubrication systems, speed control systems, and bypass control systems of gas turbines and boilers; purification of feedwater pumps, fans, and dust removal systems.

- Shipbuilding: Painting, riveting, sandblasting, welding; O₂ and CO₂ separation in air separation processes.

- Oil Refineries: Combustion gas, venting and cleaning of oil lines, hoists and lifts, drive control systems, catalyst recirculation, sandblasting, painting.

- Precision Electronics: Painting, assembly, cleaning, electroplating.

- Fibers: Automated machinery, wire suction guns, drying, dyeing.

- Foundry: Molten iron car positioning, cleaning equipment, sand conveying, driving pneumatic tools, sandblasting machines, grinding wheels, hoists and lifts, pneumatic picks, compactors, steel brushes, sandblasting, sand screening, core blasting.

- Forging: Scaling, furnace door air curtain, hoists and lifts, driving bending and straightening machines, driving clutches, brakes and clamping devices, driving forging hammers, fuel injectors.

- Sheet metal: mixing solutions, transporting chips, air cleaning, driving packaging presses, driving pressure plate chuck clutches and positioners, pneumatic tools, finishing hammers, jackhammers, drill bits, grinding machines, hoists and lifts, combination tools, riveting machines, sandblasting, lubricant spraying, painting and coating, container leak detection.
