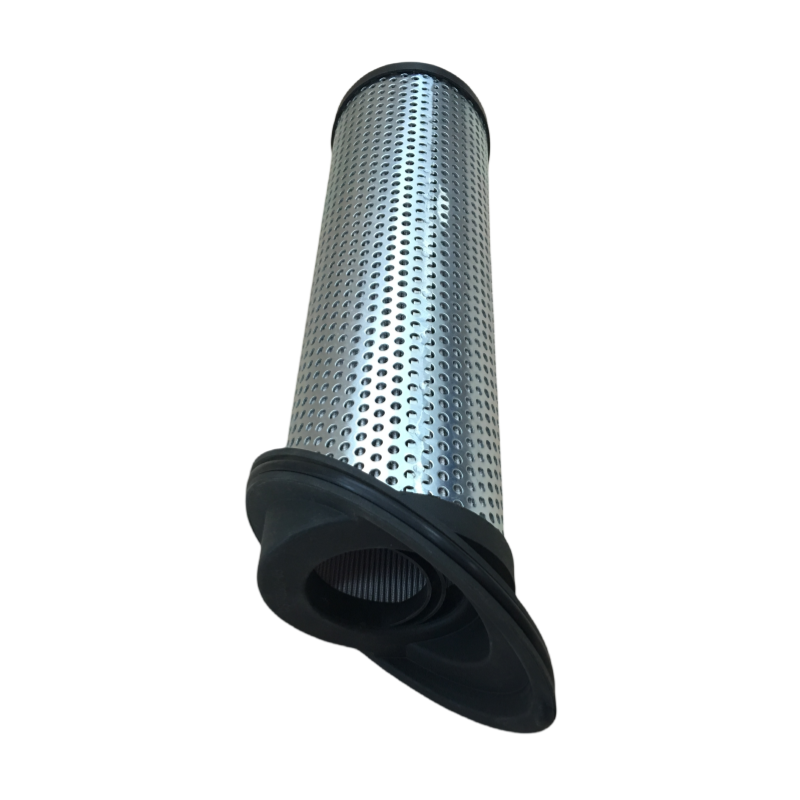

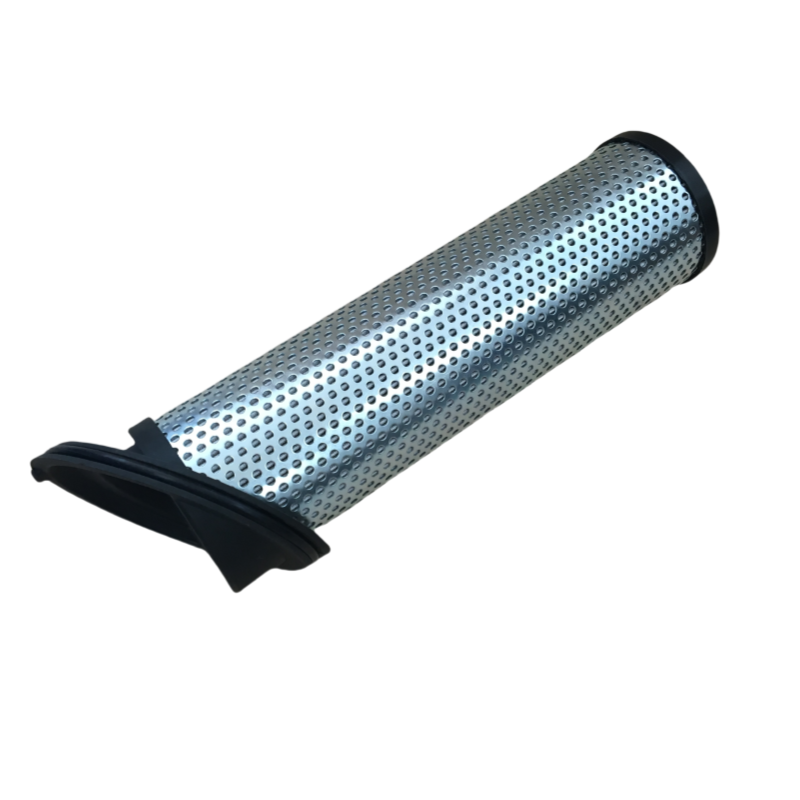

I. 27FX (Q-grade dust collector filter cartridge)

- Filtration accuracy: 5 μm (particles)

- Function: Main pipeline dust removal, protection of downstream filter cartridges

- Filter media: Borosilicate glass fiber + hydrophobic foam outer layer

- Dimensions: φ65×390 mm (same height as 9.439.0 series)

- End cap: Threaded top + rod bottom, universal interface for 27 series

- Operating parameters:

- Maximum pressure: 16 bar

- Temperature: ≤65℃

- Initial pressure differential: ≤0.07 MPa

- Suitable flow rate: Approximately 3.6 m³/min (standard flow rate for 27 series)

---

 II. 27SX (P-grade water and oil removal filter cartridge)

- Filtration accuracy: 1 μm (oil mist)

- Residual oil content: ≤1 ppm

- Function: Removes liquid water, oil mist, and particles larger than 1μm.

Filter Media: Multi-layer composite glass fiber (deep coalescing)

Size/Interface: Same as 27FX (φ65×390 mm, universal for 27 series)

Operating Parameters: Same as 27FX; Recommended pressure differential for replacement: 0.7 MPa

---

 III. 27A (S-grade ultra-fine oil removal filter element)

Filtration accuracy: 0.01 μm (oil mist)

Residual oil content: ≤0.01 ppm (oil-free)

Function: Precision oil removal, removal of trace amounts of water vapor, suitable for spraying/food/high-purity air applications

Filter Media: High-density borosilicate glass fiber + activated carbon composite layer

Size/Interface: Same as 27FX/27SX (φ65×390 mm)

Operating Parameters:

Maximum pressure: 16 bar

- Temperature: ≤60℃ (upper limit for activated carbon)
